HV AC/DC 20-220V to DC 10-200V 40MA Constant Current Linear Constant Current Driver Module for fluorescent ceiling LED Bulb

HV AC/DC 20-220V to DC 10-200V 40MA Constant Current Linear Constant Current Driver Module for fluorescent ceiling LED Bulb

£2.26 GBP
£2.26 GBP £2.26 GBP
Sale Sold out
Taxes included.
Color

SPECIFICATIONS

Brand Name: eletechsup

Model Number: LDH220MF

Origin: Mainland China

is_customized: Yes

Condition: New

Type: Module

Choice: yes

semi_Choice: yes

Product Name :

AC/DC 20-220V to DC 12V 24V 36V 48V 64V 72V 80V 40MA Linear Constant Current LED Driver Module for fluorescent ceiling lamp


Packing list:

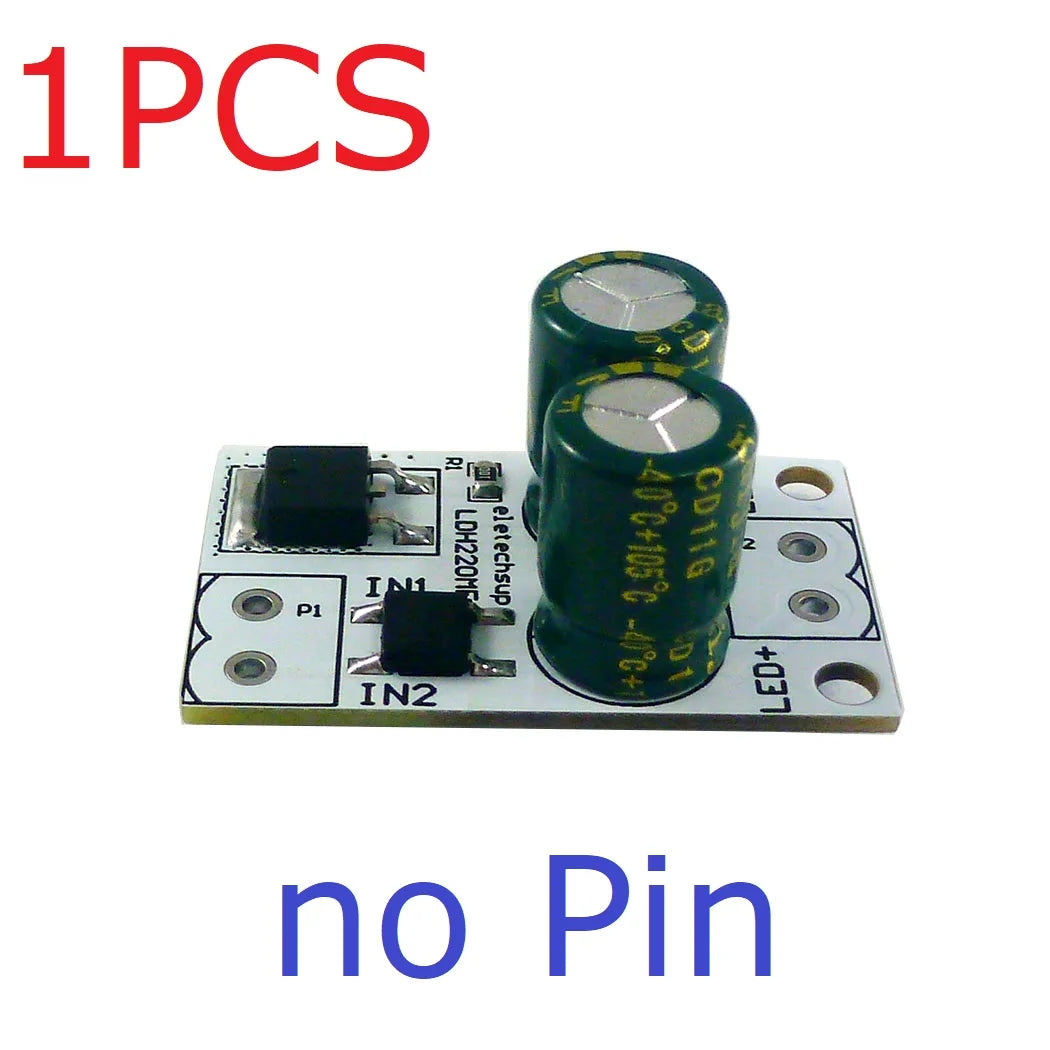

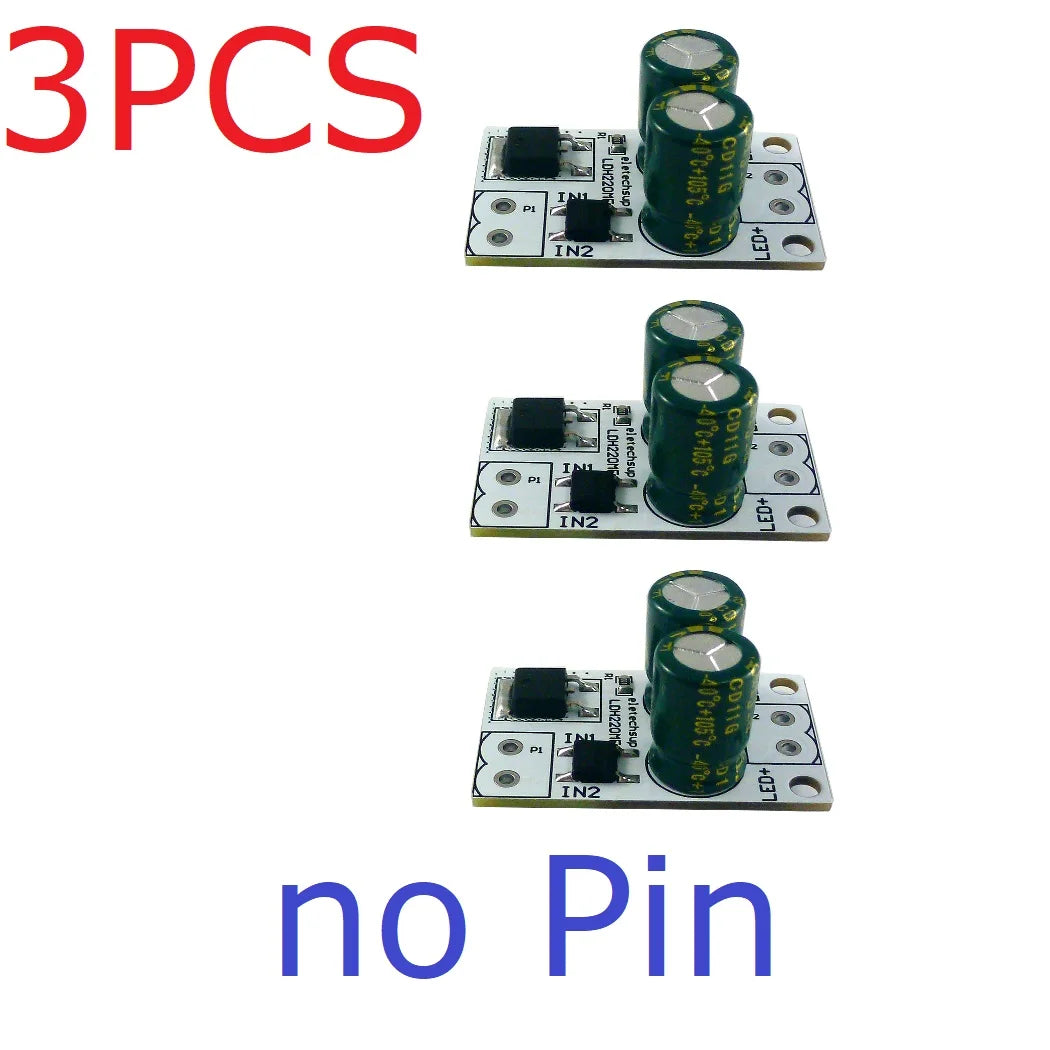

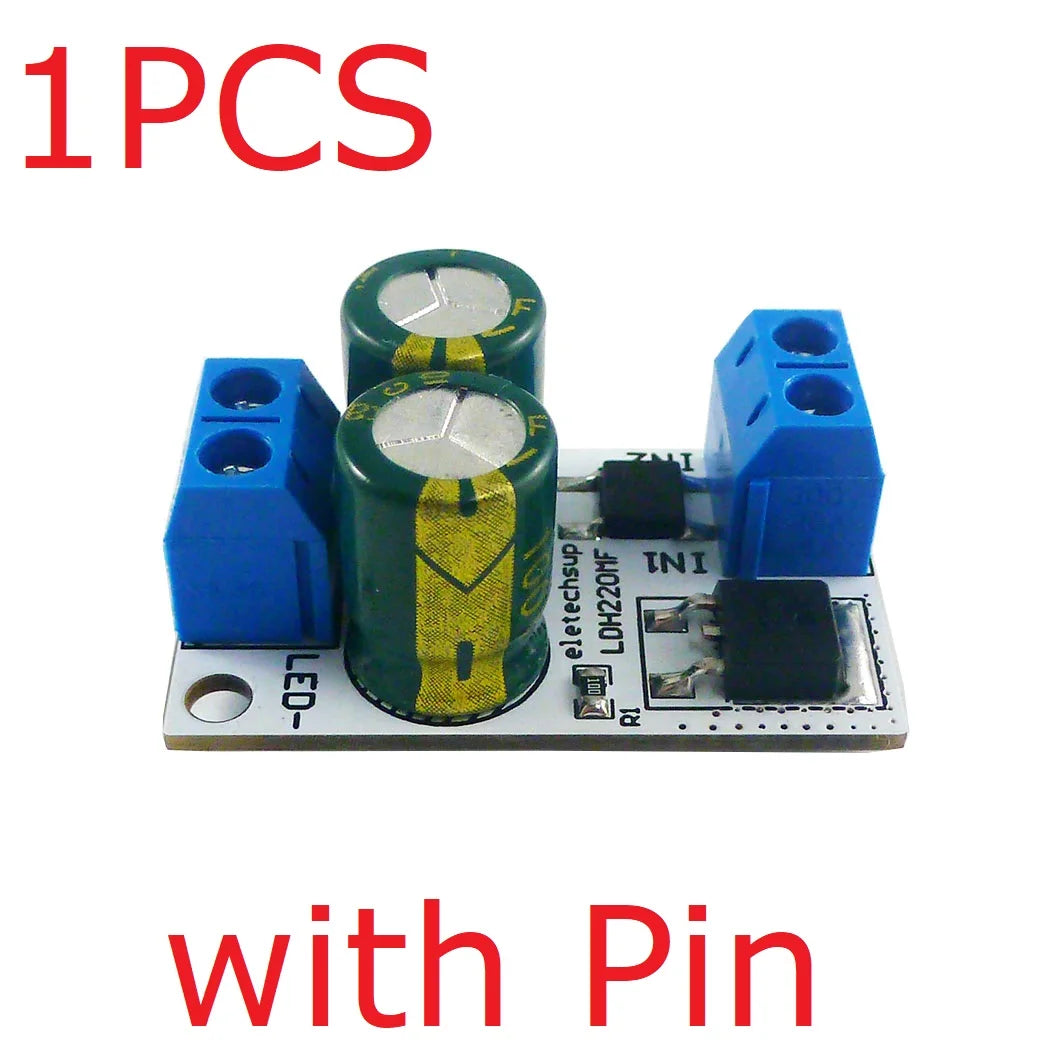

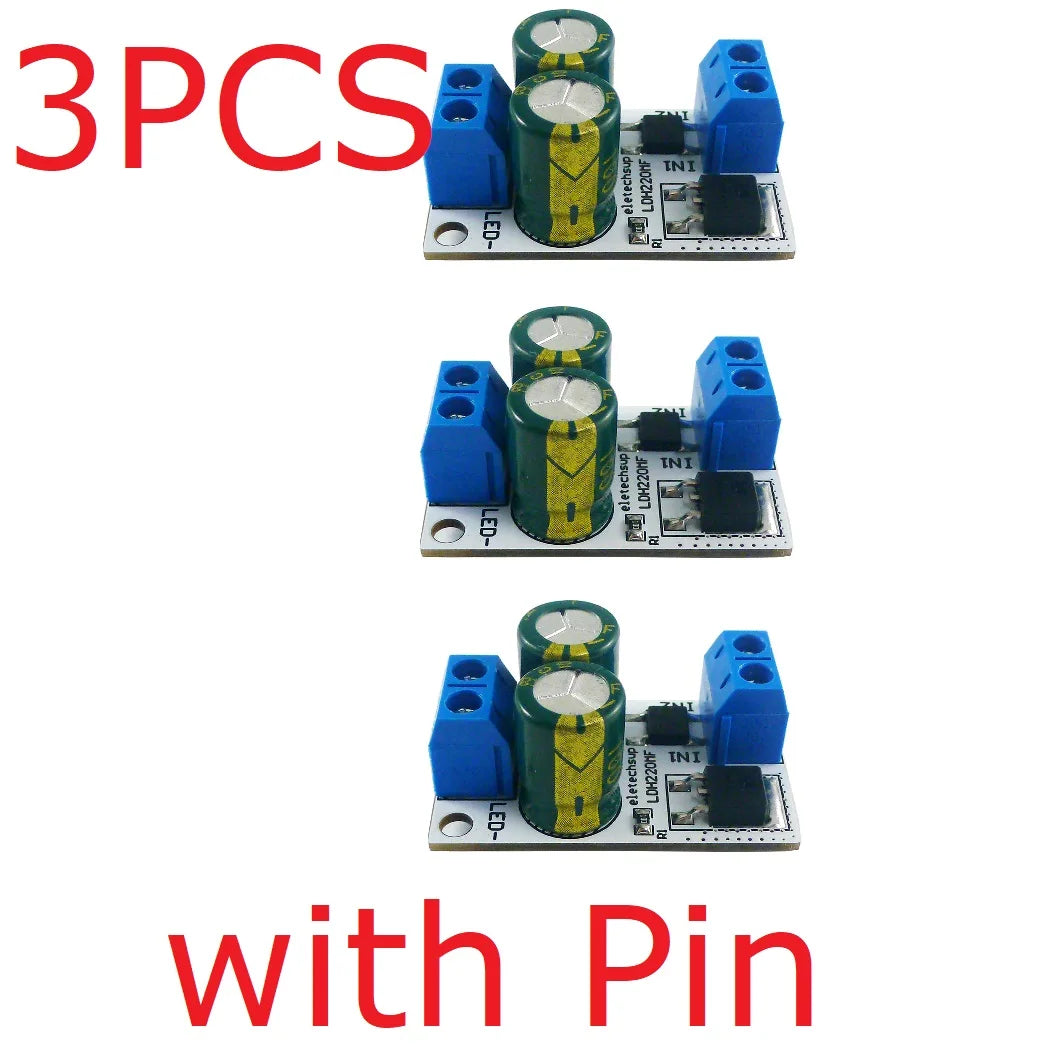

1PCS / 3PCSAC/DC 20-220V to DC 10-200V 40MA LED Driver eletechsup LDH220MF Module

(Specific according to the version and quantity you choose)



Description:
Input voltage: AC/DC 20-220V

Driving voltage: DC 10-200V(12V 24V 36V 48V 64V 72V 80V...)

Drive circuit: 40MA Constant Current

Output current error: 4%

Directly drives 40MA LEDs

Multiple modules connected in parallel to drive 80/120/160MA...LEDs

The default output drive current is 40MA, you can set the drive current to 5-60MA by replacing the R1 resistor

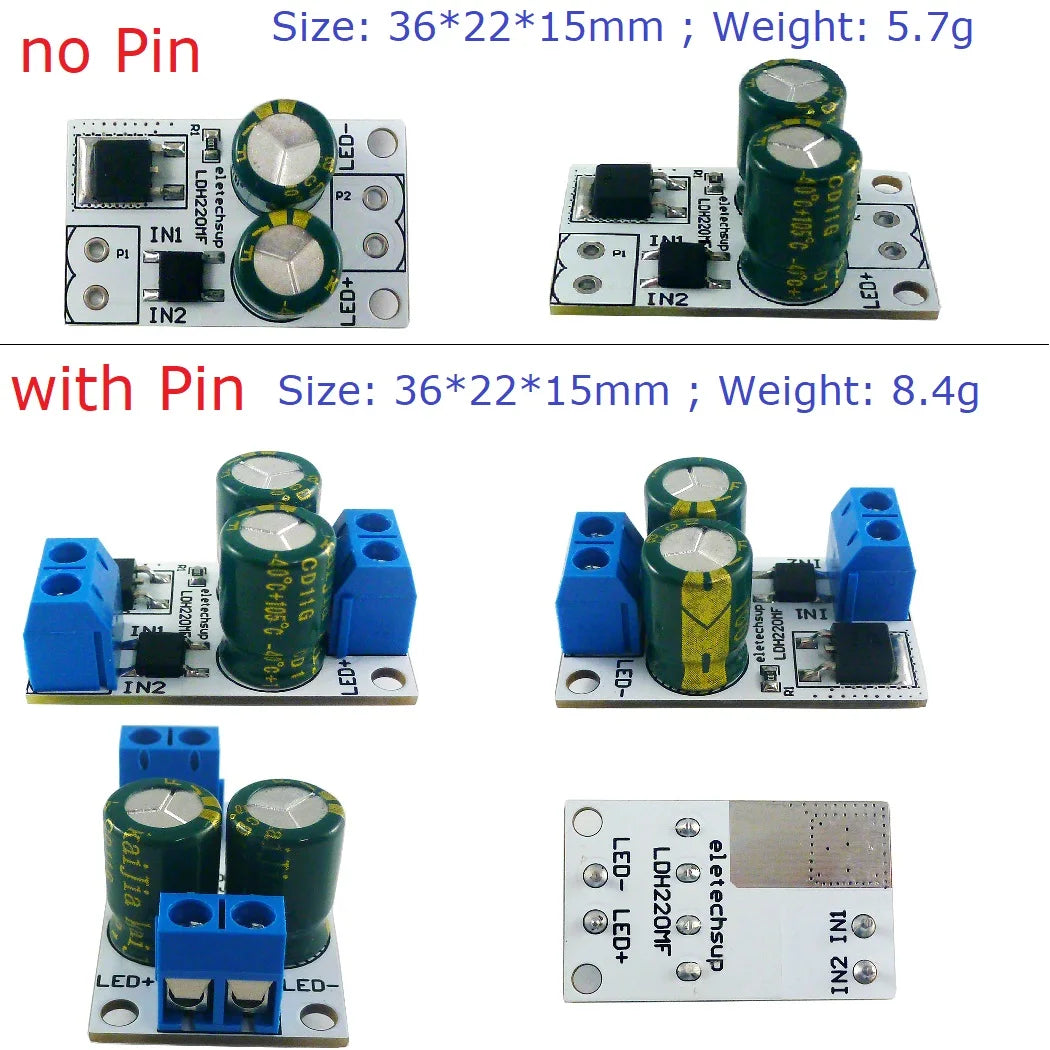

Size: 36*22*15mm ;

Weight: 8.4 grams (with Pin), 5.7grams(no Pin).

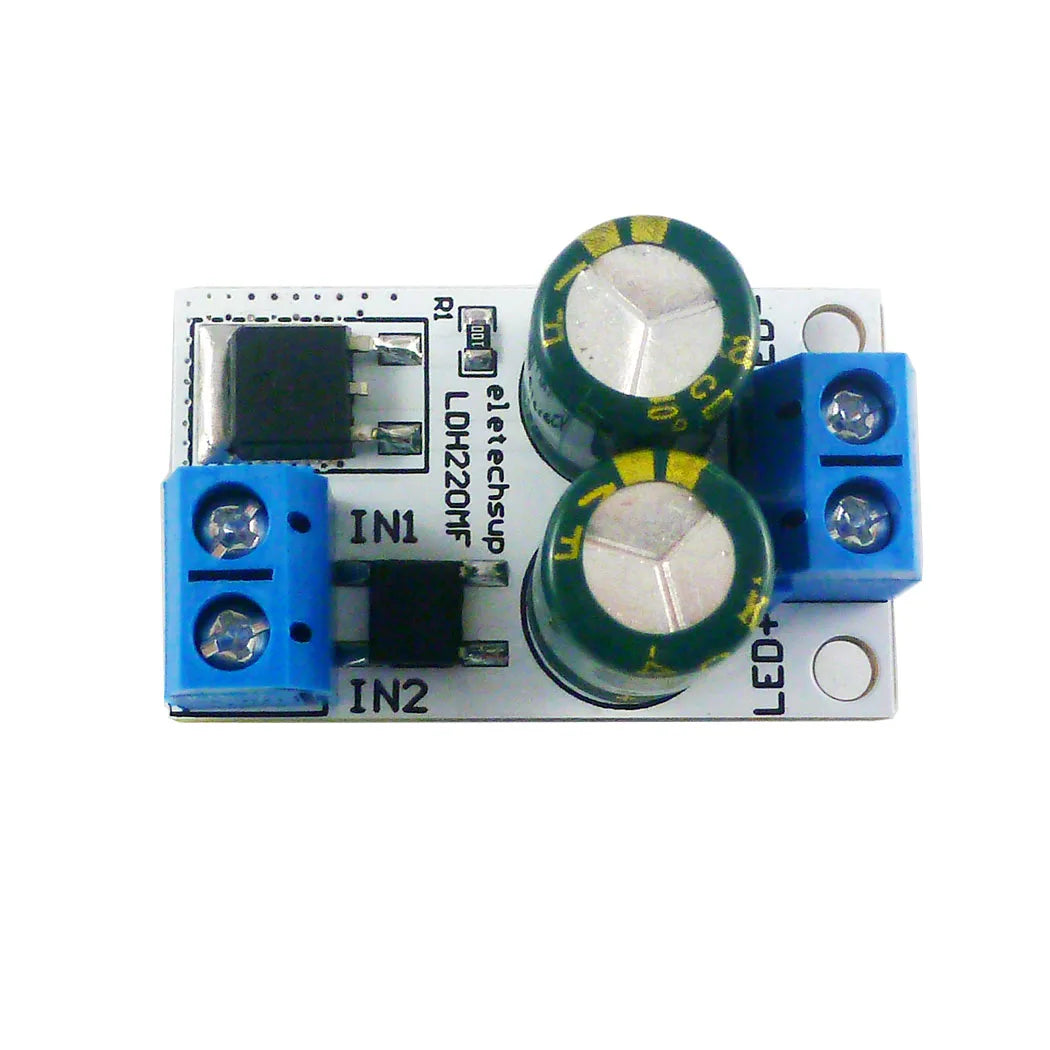

Pin description:

IN1: AC/DC power input 1 (regardless of polarity)

IN2: AC/DC power input 2 (regardless of polarity)

LED+ : LED positive pole

LED-: LED negative pole


Typical Application:

LED fluorescent lamp

LED street light

LED Bulb

LED ceiling light

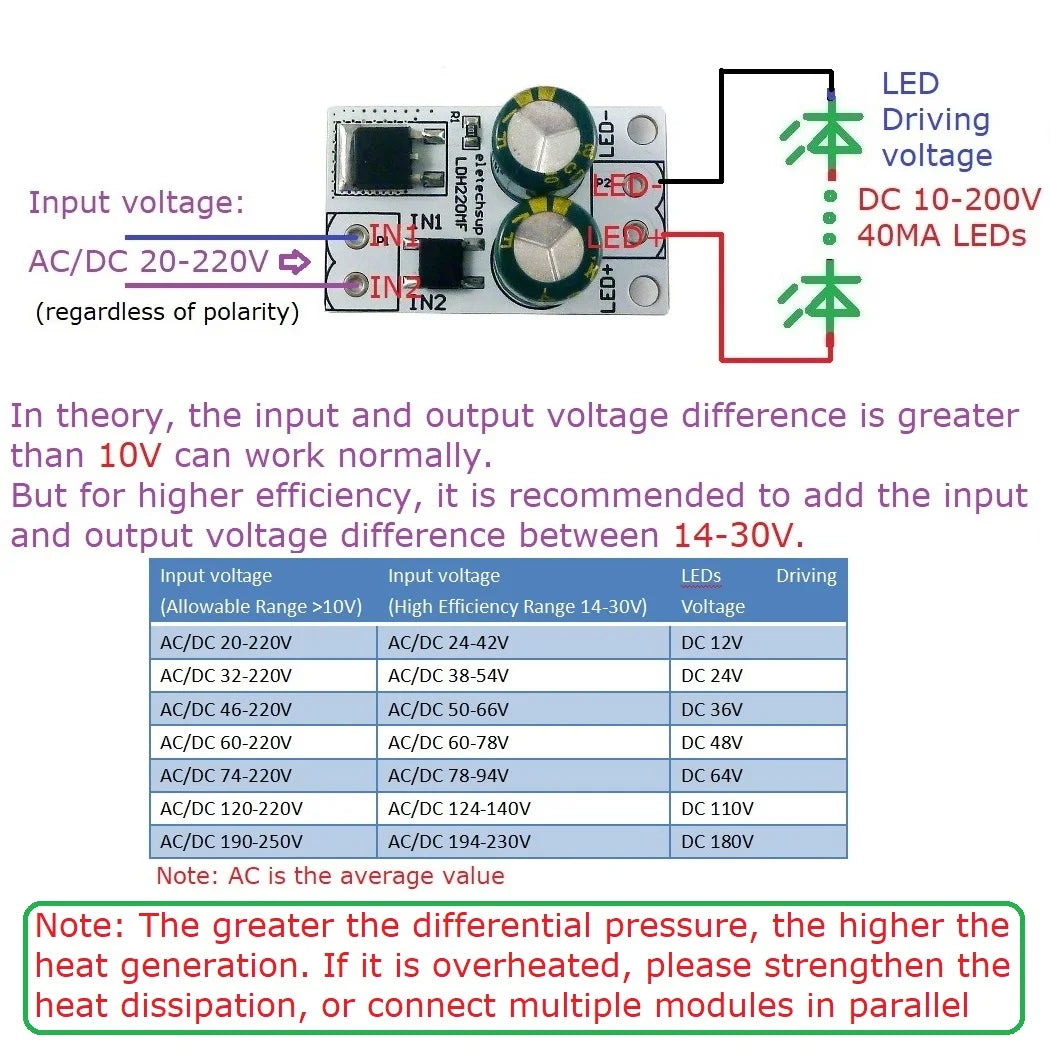

Note: The greater the differential pressure, the higher the heat generation. If it is overheated, please strengthen the heat dissipation, or connect multiple modules in parallel

In theory, the input and output voltage difference is greater than 10V can work normally.
But for higher efficiency, it is recommended to add the input and output voltage difference between 14-30V.

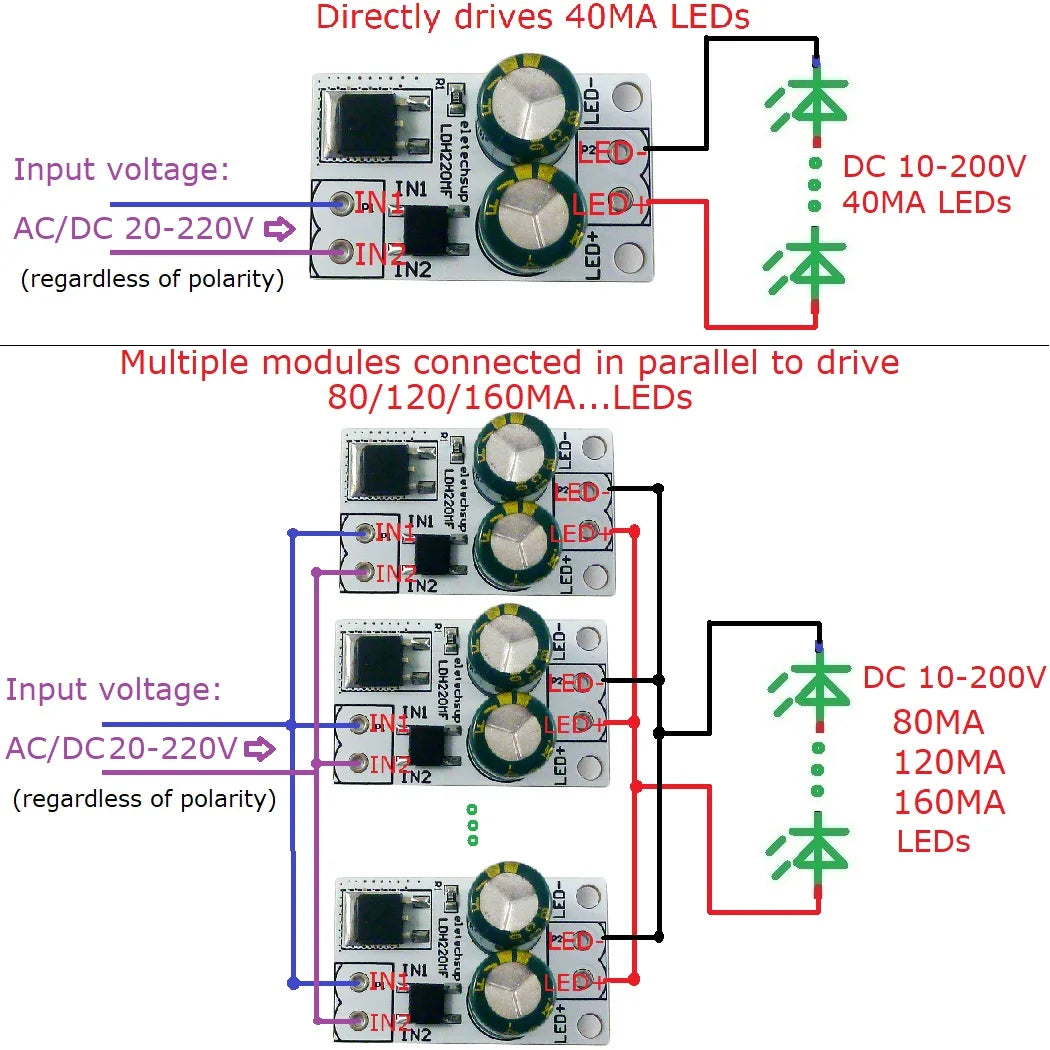

Directly drives 40MA LEDs
Multiple modules connected in parallel to drive 80/120/160MA...LEDs

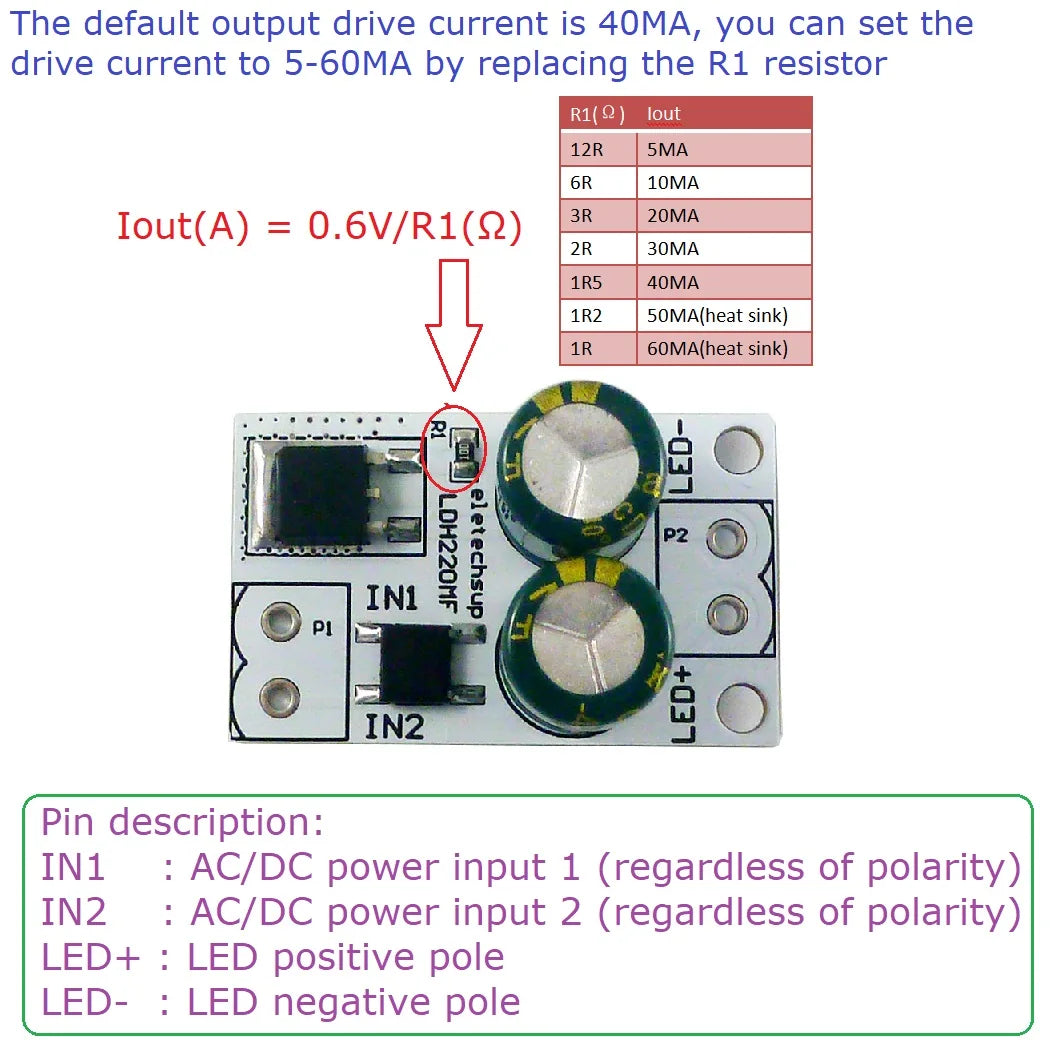

The default output drive current is 40MA, you can set the drive current to 5-60MA by replacing the R1 resistor
Iout(A) = 0.6V/R1(Ω)
